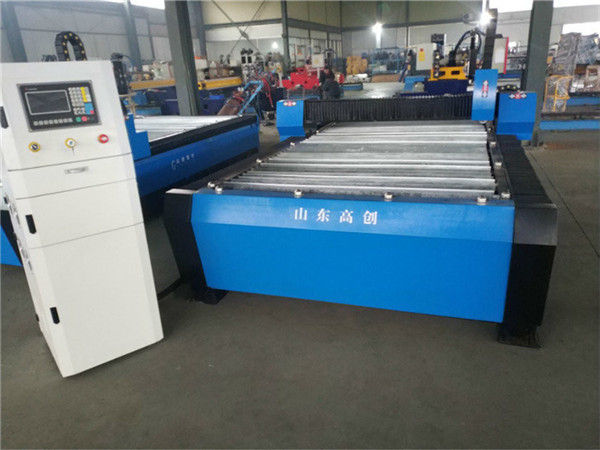

Jinan CE Profession 1325 Малка машина с плазмено рязане с ЦПУ
Основна информация


Персонализирани: Персонализирани
Състояние: Ново
Color: Customized
Работна зона: 1300 * 2500мм
Idling Speed: 15.000mm/Min
Working Speed: 10.000mm/Min
Precision: 0.07mm
Positioning Accuracy: 0.02mm
Machine Structure: Channel Steel Lathe Bed,Serrated Table

Описание на продукта


Product Overview
Plasma series is mainly applied to non-insulating material cutting,According to material thickness,power source of different current are correspondent choices to best fit precision request.

Характеристика
1.Steel structure lathe bed is capable of loading heavy metal sheet of large size.
2.Indline design under table surface makes finshed parts and scrap slide down to both side along,convenient and safe for operator.
3.DSP-hand-held control system dedicated for plasma machine,supports file reading from U disk or downloading from computer,providing high independence and great convenience duringoperation.
4.Racks and gears as transmission raise moving speed so that large area cutting can be done in short time.
5.High sensitivity THC(Torch Height Controller)is optional for auto adjustment to cutting distance and cutting precison.
6. Plasma cutting machine Y axis adopts double moters with double drivers. XYZ axis round raill, moving smoothly, with high accuracy. (Option: Square rail)
7. Excellent cutting 3D illuminated letters for advertising and channel letters on metal surface board.
8. Arc voltage height controller
9. Small cutting gap, no residua.
10. Plasma Cutter working together with other advertising machines, such as CNC Router etc, improving working efficiency
11. Superior plasma power, Taiwan linesr rail, ensure vertical section, more percision.
12. US. Haibao power and domestic Huanyuan power
13. Drive system uses a system of Beijing Stuart

Technical Specification


МоделQL-1325 машина за плазмено рязане
Работен размер1300x2500mm
Повторете точността на позициониране± 0.05 мм
Traveling speed0-24000rpm / мин
Скорост на рязане100-8000mm/min
Работно напрежениеAC380 / 50Hz
Модел на предаванеGear rack drive
Предавателна системаhigh-precision, zero clearance increased linear guide + rack
Система за рязанеBeijing Stuart cutting system (English)
шофьорRay plug drives 860
(Sino-us joint venture large drives
Плазмено захранванеImported US Haibao or Domestic Huayuan
Дебелина на рязане6-25mm
Cutting typePlasma/oxy-acetylene or propane
Входен волтаж3 phase, 220v/380v±10%
Mode of file transferUSB интерфейс
Захранване65A US Haibao power supply
Guide wayВнос на квадратна релса
Таблица бордаСтоманен нож видях зъбни меса
Straight line positioning precision± 0.2 mm / 10 метра
Straight line repeat precision±0.3mm/10m
Environmental temperature-5~45°C
влажност<90% No concreting
